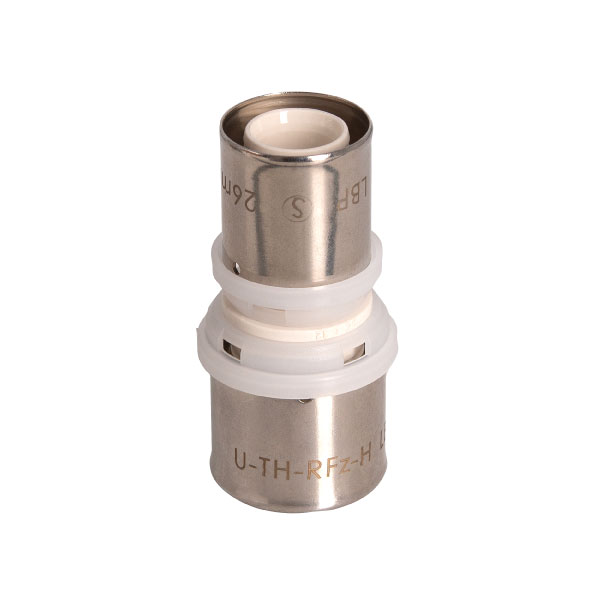

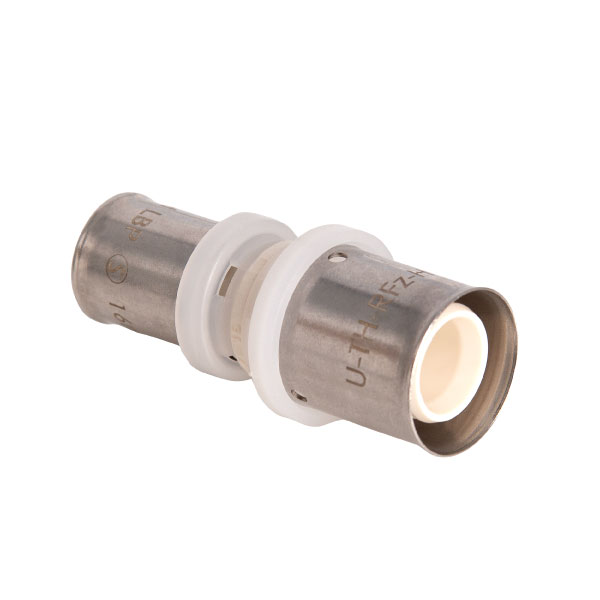

PP10 Straight Reducer
Key features
Leak Before Press Technology
Built-in Leak Before Press (LBP) technology allows unpressed fittings to be detected during low-pressure testing, helping to prevent costly mistakes, leaks, and call-backs.
TH & U Jaw Compatible
Designed for compatibility with both TH and U profile press jaws, allowing installers to use their current equipment without the need for expensive retooling.
Lead-Free PPSU Construction
Manufactured from high-performance, lead-free PPSU material that is resistant to scale build-up, corrosion, chlorine, and common water treatment disinfectants.
Faster & Safer Installation
The press-fit design enables quick, secure installations while reducing the risk of installation errors and improving overall job efficiency.
Step 1 - Select your size
Specification
Overview
Product Code
PP10
Operating Temperature
0°C to 95°C
Max Operating Pressure
10 bar
Application Class
1/6, 2/6, 4/6, 5/6 bar
Profile
U
TH
Pack Quantity
10
Guarantee
50 Years
Materials
Body
PPSU
Sleeves
304 Stainless Steel
Specification
Product Code
PP10
Operating Temperature
0°C to 95°C
Max Operating Pressure
10 bar
Application Class
1/6, 2/6, 4/6, 5/6 bar
Profile
U
TH
Body
PPSU
Sleeves
304 Stainless Steel
