Instantor Rail-PRO™
Why Instantor Rail-PRO
The Rail System is a quick, easy to install UFH system embedded within the floor screed. Ideal for use in New Builds & Extensions where a solid floor construction is to be used.
The Rails come with an adhesive strip and are secured into position above the slip membrane/separating layer by removing the protective backing strip and laying the rail in position. It is recommended that rails are fixed at 1m intervals across the floor with pipe staples used every 500mm (in between rails) and where the pipe turns in any radii exceeding 45° to further secure the pipework to the insulation
For added fixing integrity pipe staples can be pushed through eyelets within the rail to ensure an enhanced fix to the insulation.
Once the rails are secured in position the underfloor heating pipework can be laid and affixed into the rails. The rail enables UFH circuit pipework to be spaced at a minimum of 150mm centres and UFH connection pipework to be spaced at 50mm centres.
It is recommended that all pipework is pressure tested prior to the laying of the screed. Where a liquid type screed is to be installed the slip membrane/separating layer should be sealed to ensure a watertight base is achieved.
Key Features
Cost Effective
Quick & easy to install
Suitable for use with low temperature heating systems
High Heat Output
Suitable for any floor covering
No increase in floor height as UFH Pipework embedded within Screed
Provides accurate fixing method
Available Options
| Pipe Types Available | 16mm PEX-AL-PEX 16mm 5-Layer PE-RT/EVOH |
| Typical Pipe Spacings (mm) | 100mm 200mm |

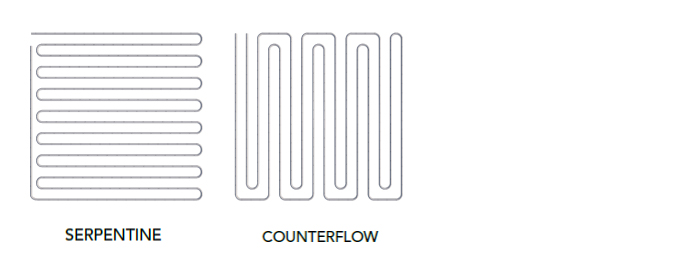

Pipework Layout Suitability
Floor Covering Suitability
Heat Output
Watts per m² at 150mm Pipe Centres
| Flow Temp °C |
Tog Rating/Output w/m² | |||
| 0 | 0.5 | 1 | 1.5 | |
| 35 | 71 | 65 | 59 | 53 |
| 40 | 79 | 72 | 64 | 60 |
| 45 | 85 | 80 | 71 | 65 |
| 50 | 96 | 86 | 78 | 70 |
Key Heat Output Details: Achieves roughly 50 W/m² at a low 41°C flow temperature, rising to 84 W/m² with a 50°C flow/
