Instantor Staple-PRO™
Why Instantor Staple-PRO
The Staple System is a quick, easy to install UFH system embedded within the floor screed while providing even heat distribution throughout the floor structure. It is ideal for use in new builds and extensions where a solid floor construction is to be used.

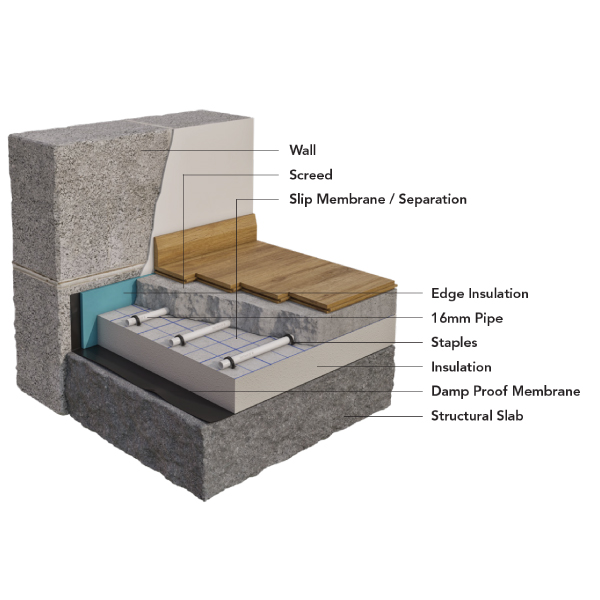

The UFH pipework is stapled through the slip membrane/separating layer and into the insulation below.
It is recommended that all pipework is pressure tested prior to the laying of the screed. Where a liquid type screed is to be installed, the slip membrane/separating layer should be sealed to ensure a watertight base is achieved.
For optimum system performance we recommended that the UFH circuit is installed in a spiral pattern.
Warranty
Pex-Al-Pex: 50 Years, Pert-Evoh-Pert: 50 Years, Manifold: 5 Years, Mixing Kit: 5 Years, Pump: 5 Years, Whisper Controls: 5 Years
Key Features
Cost Effective
Quick & easy to install
Suitable for use with low temperature heating systems
High Heat Output
Suitable for any floor covering
No increase in floor height as UFH Pipework embedded within Screed
Available Options
|
Pipe Types Available |
16mm PEX-AL-PEX 16mm 5-Layer PE-RT/EVOH |
|
Staple Types Available |
16mm PEX-AL-PEX 16mm 5-Layer PE-RT/EVOH |
|
Typical Pipe Spacings (mm) |
100mm / 150mm / 200mm |

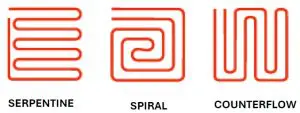

Pipework Layout Suitability
Floor Covering Suitability
Seek advice from floor covering manufacturer regarding installation methods prior to installation.
Heat Output
Watts per m² at 150mm Pipe Centres
| Pipe Spacing | 150mm | ||||
| Design Room Temperature | 20°C | ||||
| UFH Pipe Circuit ΔT | 5°C | ||||
| Floor Covering Resistance (TOG) |
Flow Temperature (°C) | ||||
| 30 | 35 | 40 | 45 | 50 | |
| 0.00 | 50 | 84 | 117 | – | – |
| 0.50 | 37 | 61 | 86 | 110 | – |
| 1.00 | – | 44 | 61 | 79 | 96 |
| 1.50 | – | 34 | 47 | 61 | 74 |
| 2.00 | – | – | 40 | 52 | 63 |
| 2.50 | – | – | 37 | 47 | 58 |
| Pipe Spacing | 150mm | ||||
| Design Room Temperature | 20°C | ||||
| UFH Pipe Circuit ΔT | 7°C | ||||
| Floor Covering Resistance (TOG) |
Flow Temperature (°C) | ||||
| 30 | 35 | 40 | 45 | 50 | |
| 0.00 | 44 | 77 | 111 | – | – |
| 0.50 | 32 | 56 | 81 | 105 | – |
| 1.00 | – | 40 | 58 | 75 | 93 |
| 1.50 | – | 31 | 45 | 58 | 72 |
| 2.00 | – | – | 38 | 49 | 61 |
| 2.50 | – | – | 35 | 45 | 56 |
