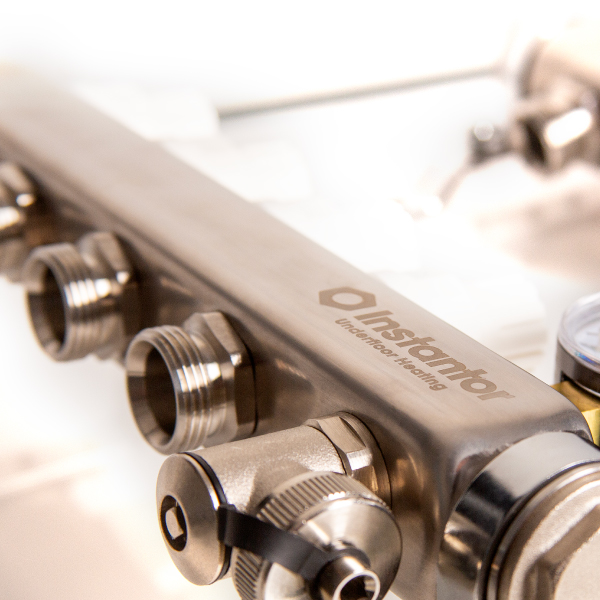

Instantor Manifolds

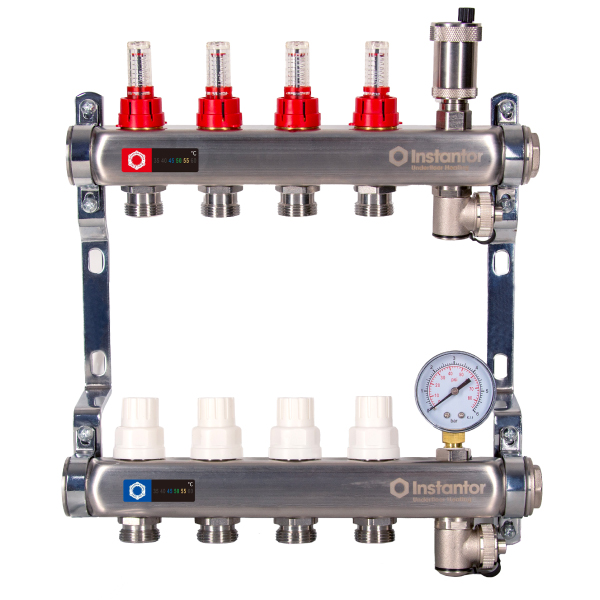

KEY FEATURES
– Pre-assembled for fast installation to save time on site and simplify system setup
– High-quality stainless-steel construction offers excellent corrosion resistance and long life
– 3/4” Eurocone connections are compatible with a wide range of underfloor heating pipe systems
– Integrated fill & drain valves enable quick system filling, flushing, and maintenance
– Built-in pressure gauge allows accurate system monitoring and diagnostics
– Flow and return temperature sensor points for precise monitoring of supply and
return temperatures
– Heavy-duty mounting brackets included for secure installation
– Compact, service-friendly design allows for easy access, adjustment,
and ongoing system maintenance

TECHNICAL SUMMARY
– 2-12 Port
– 0-5l/m Flow Meters
– Automatic Air Vent
– Pressure Gauge
– Working Temperature: 10 – 80°C
– Maximum Working Pressure: 10 BAR

Search Merchants Download Tech Guide

Available Options

PORTS	CODE
2	UF10002
3	UF10003
4	UF10004
5	UF10005
6	UF10006
7	UF10007
8	UF10008
9	UF10009
10	UF10010
11	UF10011
12	UF10012

Manifold Materials

REFERENCE	MATERIAL
1	BPb57-3
2	SS304
3	SS304
4	ABS
5	SS304
6	EPDM
7	SS304
8	A3
9	HPb57-3
10	HPb57-3
11	HPb57-3
12	HPb57-3
13	HPb57-3
14	HPb57-3

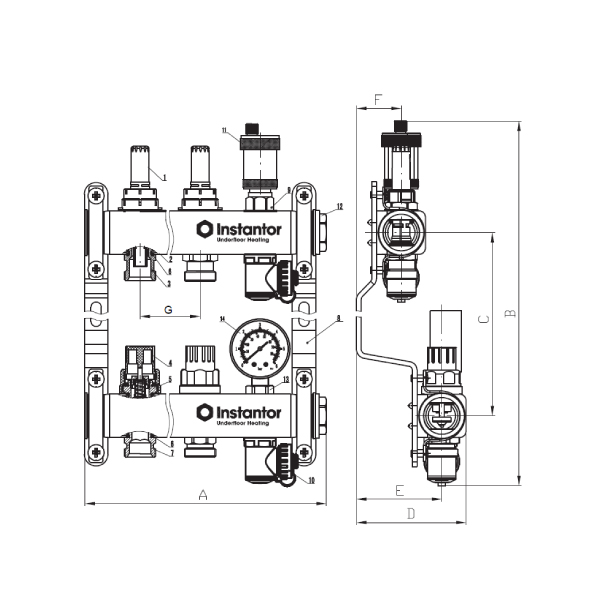

Manifold Dimensions

REFERENCE	A	B	C	D	E	F	G
2 Port	201	362	210	191.5	71	37.5	50
3 Port	251	362	210	191.5	71	37.5	50
4 Port	301	362	210	191.5	71	37.5	50
5 Port	351	362	210	191.5	71	37.5	50
6 Port	401	362	210	191.5	71	37.5	50
7 Port	451	362	210	191.5	71	37.5	50
8 Port	501	362	210	191.5	71	37.5	50
9 Port	551	362	210	191.5	71	37.5	50
10 Port	601	362	210	191.5	71	37.5	50
11 Port	651	362	210	191.5	71	37.5	50
12 Port	701	362	210	191.5	71	37.5	50
